Quantum Computing

1. Basics of Quantum Computing

Quantum Bit (Qubit): Unit of quantum information. Can be 0, 1, or a superposition of both.

Qbit

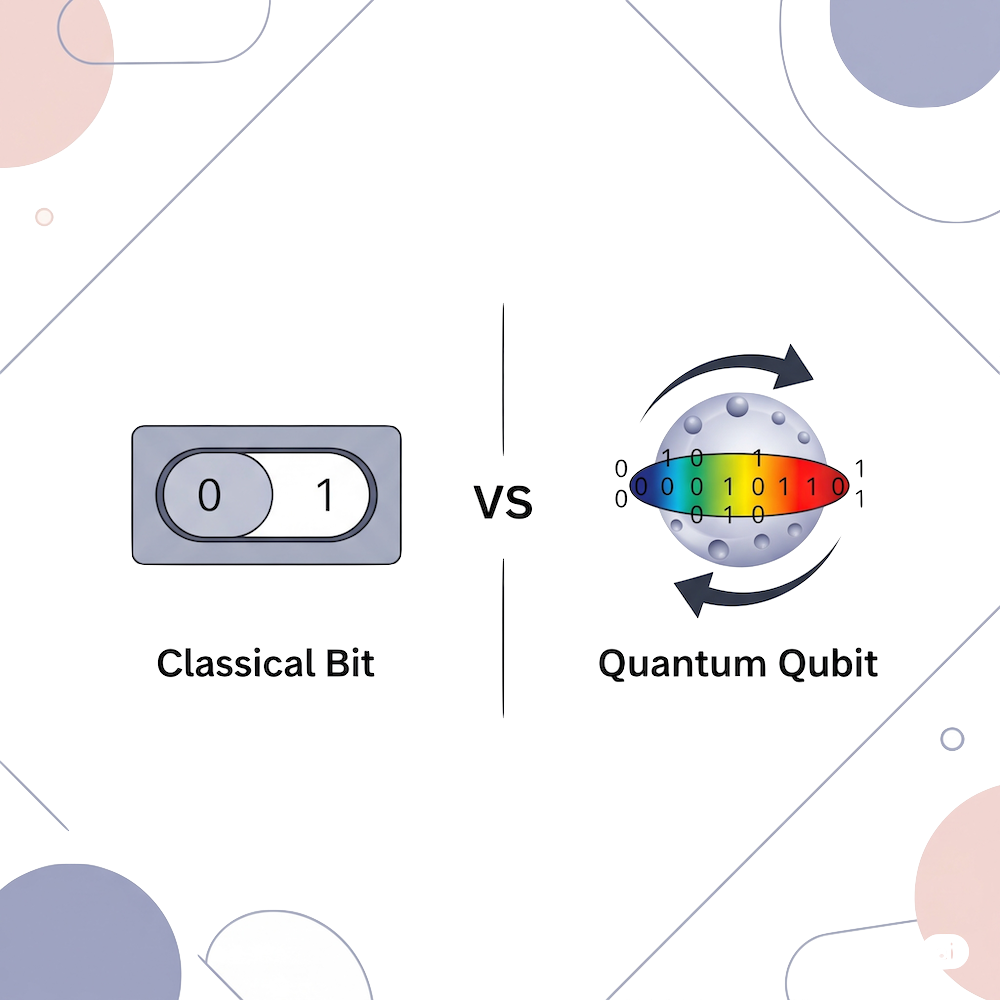

Bits and Qubits: A Simple Explanation

Imagine you have a light switch.

A bit is like a regular light switch. It can either be ON (which we can call 1) or OFF (which we can call 0). It can only be one or the other at any given time.

Now, imagine a special light switch that isn’t just on or off. It can also be a little bit on and a little bit off at the same time. This is like a qubit.

Here’s why that’s cool:

  • More Information: Because a qubit can be a mix of “on” and “off,” it can hold much more information than a simple on/off switch.
  • Faster Calculations: This ability to be in many states at once means quantum computers using qubits can solve some very difficult problems incredibly fast. Think of it like this: If a regular computer has to try one solution at a time, a quantum computer can try many solutions all at once!
  • Massive Power: Just a few qubits can hold more information than a huge number of regular bits. For example, a small number of qubits could do a calculation in minutes that would take even the fastest regular computers millions of years!

How are they made?

Regular computer chips are usually made of silicon. But qubits are much more exotic! They can be made from tiny things like:

  • Trapped atoms
  • Particles of light (photons)
  • Even super-cold magnets

Sometimes, these qubit systems need to be kept extremely cold, colder than anything you can imagine!

So, in short, a bit is either 0 or 1, like a simple light switch. A qubit can be 0, 1, or a mix of both at the same time, giving quantum computers incredible power.

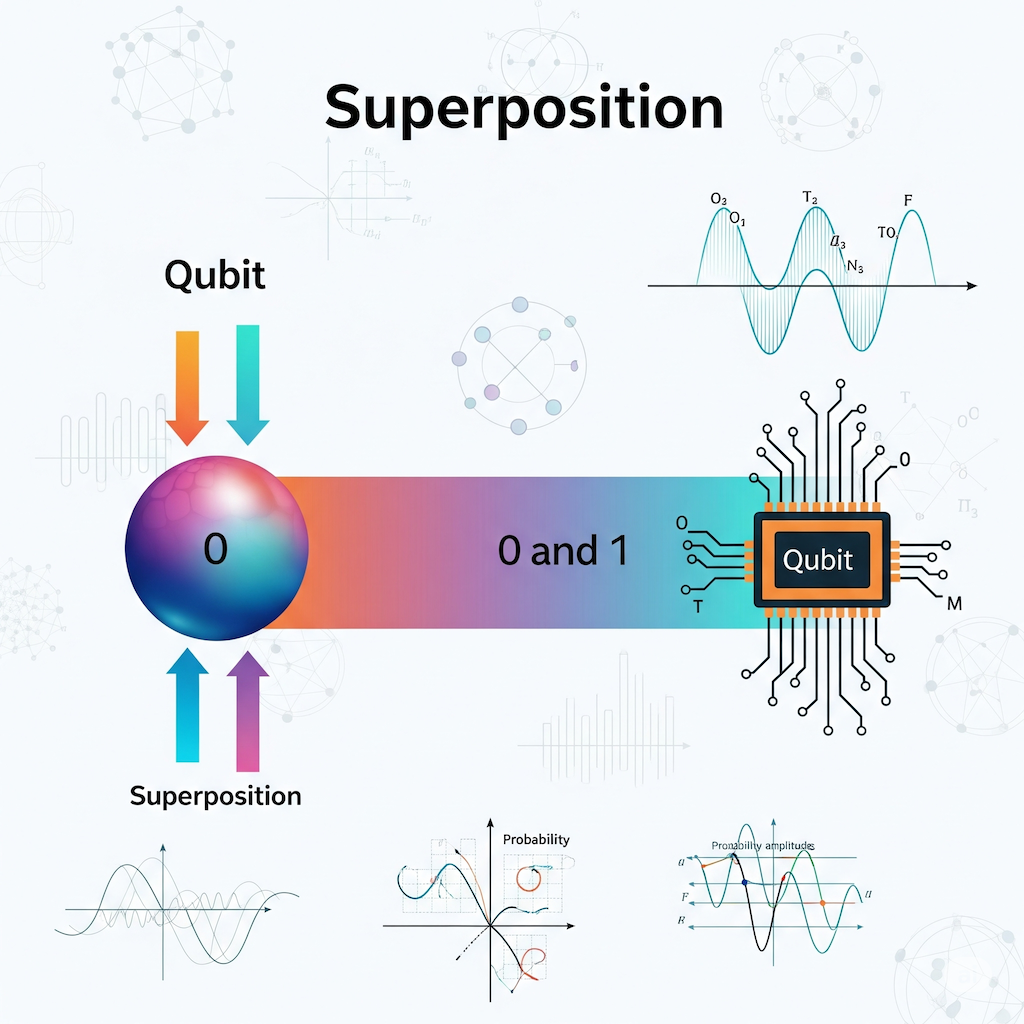

Superposition: Imagine our special light switch again, the one that’s like a qubit.

Superposition is simply the fancy name for the ability of that special light switch (or qubit) to be ON and OFF at the same time, or any mix in between.

Think of it like this:

  • Regular Light Switch (Bit): It’s either definitely ON or definitely OFF. There’s no “in between.”
  • Special Light Switch (Qubit in Superposition): It’s not just ON, and it’s not just OFF. It’s in a fuzzy, “maybe ON, maybe OFF” state. It could be 30% ON and 70% OFF, or 80% ON and 20% OFF, or even 50% ON and 50% OFF. It’s like it’s exploring all possibilities at once!

The important trick: This “mixed” state only lasts until you actually look at it (or “measure” it). 1 The moment you look, it has to decide and will instantly become either fully ON or fully OFF, just like a regular light switch. But before you look, it’s holding all those possibilities at once.

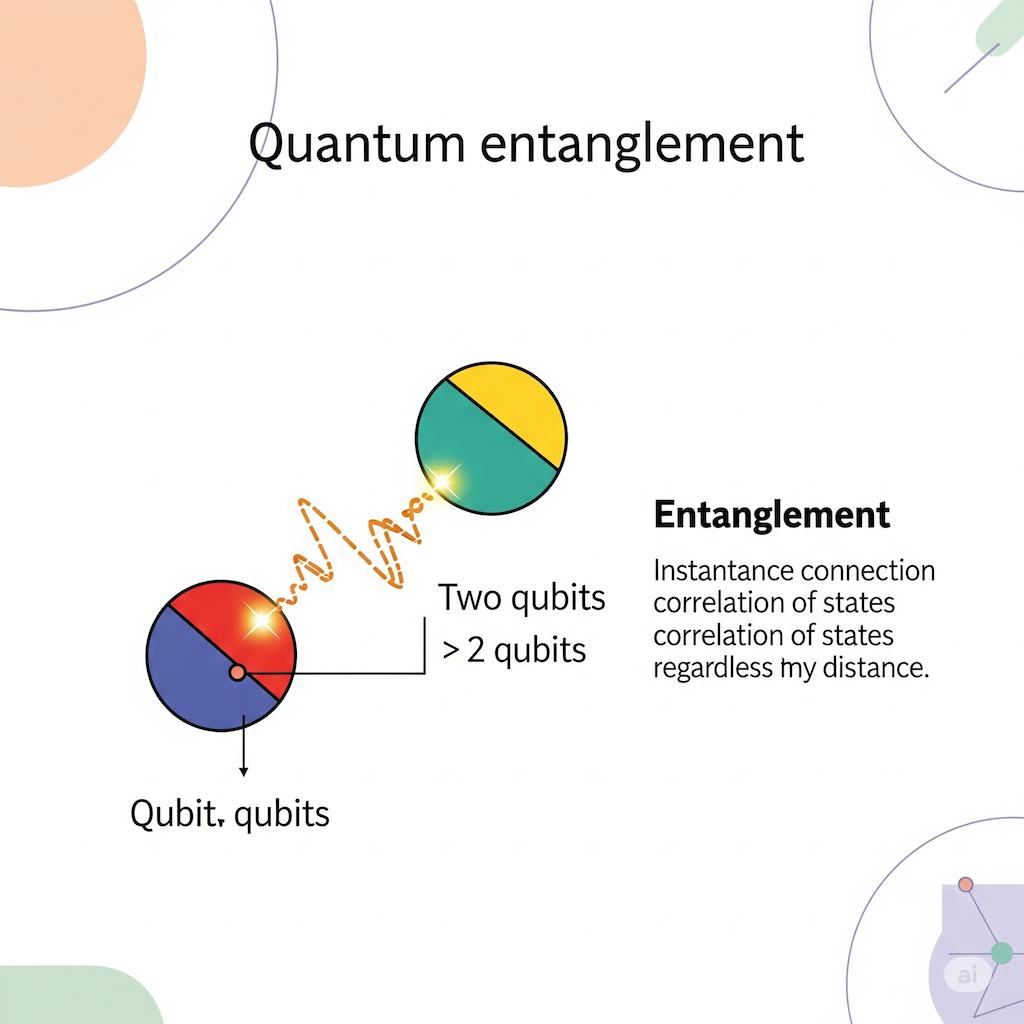

Entanglement: You know how with superposition, a qubit can be ON and OFF at the same time? Well, entanglement is when two (or more) qubits are linked together in a special way, no matter how far apart they are.

Think of it like this:

Imagine you have two special coins, a red one and a blue one. These aren’t just any coins; they’re magical, entangled coins.

  1. They start together: You put them both in a special box, and something happens that links them.
  2. You separate them: You give the red coin to your friend in another city, and you keep the blue coin.
  3. The “spooky” connection: Now, if you flip your blue coin and it lands on HEADS, you instantly know (without even looking at it!) that your friend’s red coin, no matter how far away, must be TAILS. And if your blue coin lands on TAILS, your friend’s red coin must be HEADS.

It’s like they’re connected by an invisible string, even if they’re on opposite sides of the world. The moment one coin “decides” its state (when you flip and look at it), the other coin instantly “knows” what its state must be, even if nobody has looked at it yet.

Key things about entanglement:

  • Instant Connection: The change in one entangled particle seems to happen instantly with the other, no matter the distance. This is what Albert Einstein famously called “spooky action at a distance.”
  • Not a secret code: You can’t use entanglement to send messages faster than light. That’s because when you flip your coin, the outcome (heads or tails) is still random. You can’t choose what your coin will land on to send a specific message to your friend. You just know that whatever your coin landed on, your friend’s coin is the opposite.
  • Super powerful for quantum computers: This strange connection is super important for how quantum computers work. It allows qubits to share information and work together in ways that classical bits can’t, making them incredibly powerful for certain complex problems.

So, entanglement is when two or more quantum particles (like qubits) are so deeply connected that the state of one instantly tells you something about the state of the other, no matter how far apart they are.   Sources and related content

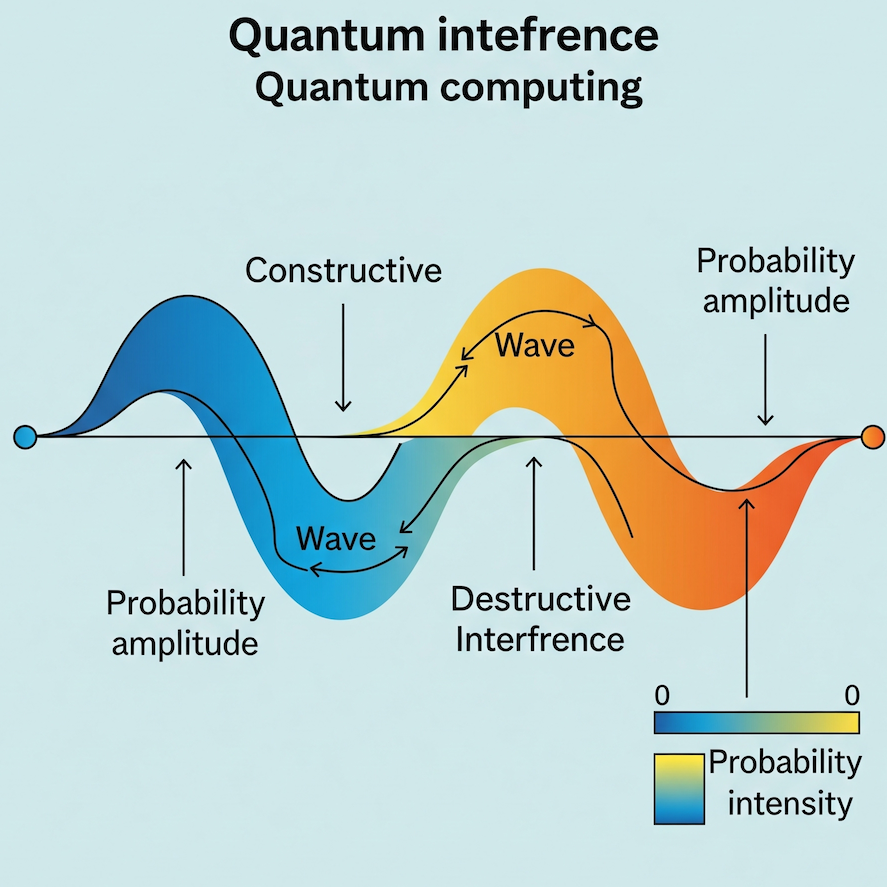

Quantum Interference: Remember how a qubit can be a mix of ON and OFF at the same time (superposition)? Quantum interference is how these “mixed” states interact with each other.

Imagine you’re at a concert, and there are two speakers playing music.

  • Classical Interference (like regular waves):
    • If the sound waves from both speakers hit your ears at the exact same time (their “peaks” line up), the sound gets louder (this is called constructive interference).
    • If the sound waves from both speakers hit your ears at opposite times (one speaker’s “peak” hits when the other’s “trough” hits), the sounds can cancel each other out, making it quieter or even silent (this is called destructive interference). This is how noise-canceling headphones work!
  • Quantum Interference (with qubits):
    • In quantum mechanics, particles like electrons or photons (which qubits can be made from) also behave like waves, but they’re not waves of water or sound. They are waves of probability. This means they describe the likelihood of finding a particle in a certain state (like ON or OFF, or a mix).
    • When a qubit is in superposition, it’s like its “probability wave” is split into many different paths or possibilities.
    • Quantum Interference happens when these “probability waves” from different paths meet and interact.
    • Just like sound waves, they can:
      • Add up (constructive interference): This makes certain outcomes (like getting a “0” or a “1” in your measurement) much more likely to happen.
      • Cancel out (destructive interference): This makes other outcomes much less likely, or even impossible.

Why is this important for quantum computers?

This is the “magic trick” that makes quantum computers so powerful!

Imagine a maze with many paths. A regular computer has to try each path one by one to find the exit.

A quantum computer, thanks to superposition, can explore all the paths at once. Then, it uses quantum interference to:

  1. Amplify the “probability waves” of the correct solutions (making them much more likely to be found).
  2. Cancel out the “probability waves” of the wrong solutions (making them very unlikely to be found).

So, when the quantum computer finally gives you an answer (when you “measure” the qubits and they collapse out of superposition), it’s much more likely to be the correct answer because interference has essentially steered the probabilities towards it.

In simple terms, Quantum Interference is the way that the different possibilities within a qubit’s “mixed state” (superposition) interact, either making certain outcomes more likely or less likely. It’s how quantum computers filter out wrong answers and find the right ones super fast!

2. Quantum Gates

You know how a regular light switch can either be ON or OFF? And how a bit (the basic unit of information in regular computers) can be 0 or 1?

Well, in a regular computer, to change a 0 to a 1, or to do math like adding numbers, you use something called logic gates. These are like tiny electronic machines that take bits as input and give new bits as output based on simple rules (like “if this is 0 and that is 1, then the output is 0”). They’re the building blocks of all operations in a classical computer.

Now, let’s talk about Quantum Gates.

Think of a Quantum Gate as a special kind of “operation” or a “button” that you press on a qubit.

Remember, a qubit isn’t just 0 or 1; it can be a mix of both (superposition). And qubits can also be linked (entanglement).

A Quantum Gate is like a precise way to change the state of a qubit, or change the relationship between multiple qubits.

Here’s a simpler way to think about it:

  • Classical Logic Gate: It’s like a simple switch that just flips a bit from 0 to 1, or 1 to 0. It’s very direct.
  • Quantum Gate: It’s like a special control dial on our magical light switch (qubit). This dial can do much more than just flip it completely ON or OFF:
    • It can rotate the qubit’s “on-ness” and “off-ness” (changing its superposition). For example, it might turn a qubit that was 100% 0 into 50% 0 and 50% 1.
    • It can interfere with the qubit’s “probability waves” to make certain outcomes more likely and others less likely.
    • It can even entangle two separate qubits, linking them together in that “spooky” way we talked about.

Why are Quantum Gates important?

Just like classical logic gates are the building blocks of classical computers, Quantum Gates are the building blocks of quantum computers.

By applying a sequence of different quantum gates to qubits, a quantum computer can:

  1. Prepare qubits in very specific superposition states.
  2. Entangle qubits together.
  3. Manipulate their probability waves using interference.
  4. Ultimately, perform the complex calculations that allow quantum algorithms to solve problems much faster than classical computers.

So, a Quantum Gate is simply a fundamental operation that precisely controls and changes the state of one or more qubits, allowing quantum computers to do their powerful calculations.

3. Quantum Algorithms

  • Shor’s Algorithm: This is a famous quantum algorithm that can find the prime factors of very large numbers much, much faster than classical computers. This is a big deal for security, as many of today’s internet encryptions rely on the fact that factoring large numbers is very hard for classical computers.
  • Grover’s Algorithm: This algorithm can search through unsorted lists or databases much faster than any classical method. Imagine looking for a specific name in a giant phone book where the names aren’t in alphabetical order – Grover’s algorithm could find it quicker. Speeds up unstructured database searches (√N time).
  • Deutsch-Jozsa Algorithm: Imagine a hidden coin-flipping machine. It’s either designed to always give you the same side (always heads, or always tails), or it’s designed to give you half heads and half tails if you try all options.
    • A regular computer would have to flip the coin many times to figure out which type of machine it is.
    • The Deutsch-Jozsa Algorithm is a quantum trick that allows a quantum computer to figure out if the machine is “always the same” or “half and half” by flipping the coin just once.
    • Solves problems faster than classical algorithms.

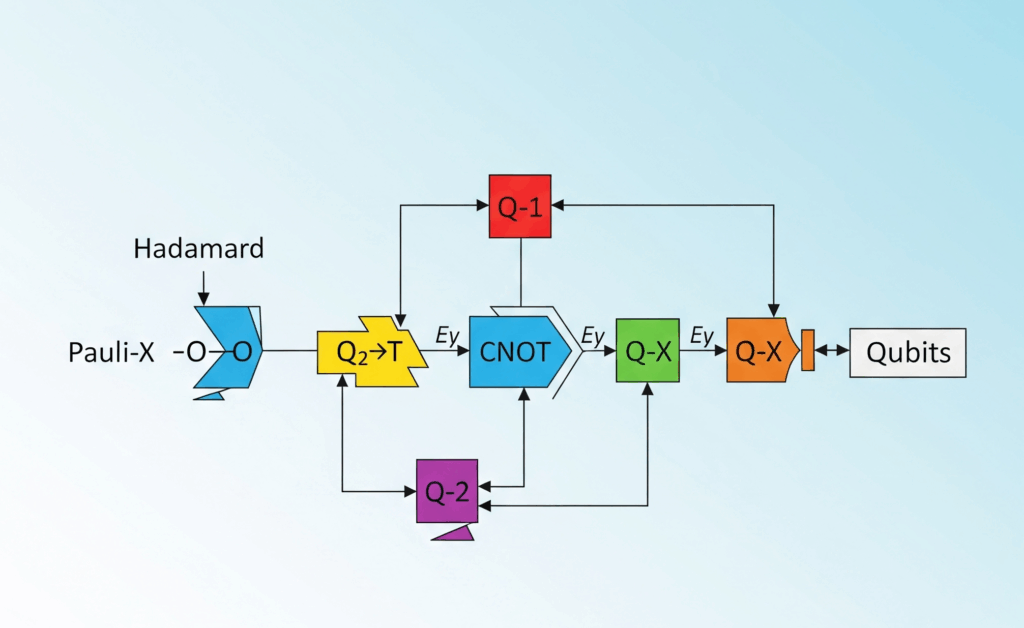

4. Quantum Circuits

You know how a recipe has steps, and each step uses certain tools and ingredients?

  • A Quantum Circuit is basically the visual recipe or blueprint for a quantum computer to follow.

It’s a diagram that shows:

  1. The Qubits: Which qubits are involved (like the ingredients).
  2. The Quantum Gates: Which quantum operations (the special tools or “buttons” we talked about earlier) to apply to which qubits.
  3. The Order: In what sequence these operations should be performed.
  4. The Measurement: When and where to “look” at the qubits to get the final answer.

Think of it like sheet music for a quantum computer:

  • Each horizontal line represents a qubit.
  • The little boxes or symbols on those lines represent the quantum gates (operations) that act on the qubits.
  • The lines flowing from left to right show the time or the order of operations.
  • Finally, the symbols for measurement tell the computer to stop being “fuzzy” (superposition) and give a definite answer.

Why is it important?

Quantum circuits are how quantum programmers tell a quantum computer exactly what to do to solve a problem, step by step, using all the quantum properties like superposition and entanglement. It’s the language we use to design and run quantum algorithms.

5. Key Concepts

6. Quantum Computing Models

  • Gate Model: Uses quantum gates to process information (e.g., IBM Q).
  • Adiabatic Quantum Computing: Slowly evolves the system to find the ground state.
  • Quantum Annealing: Solves optimization problems (e.g., D-Wave systems).

7. Quantum Hardware

  • Superconducting Qubits: Use Josephson junctions (e.g., IBM, Google).
  • Trapped Ions: Use ions trapped by electromagnetic fields.
  • Photonic Qubits: Use photons for computation.
  • Topological Qubits: Based on braiding quasiparticles (future tech).

8. Applications

  • Cryptography: Breaking RSA, quantum key distribution (QKD).
  • Machine Learning: Speed up training and data analysis.
  • Optimization: Logistics, finance, and AI applications.
  • Chemistry/Physics: Simulating molecules and quantum systems.

9. Challenges

  • Scalability: Building large-scale quantum computers.
  • Error Correction: Overcoming quantum noise.
  • Physical Limitations: Maintaining qubits at near-absolute-zero temperatures.

10. Quantum Computing Companies

  • IBM Quantum: Offers cloud-accessible quantum computers.
  • Google Quantum AI: Achieved quantum supremacy with Sycamore.
  • Rigetti, D-Wave, Honeywell, IonQ: Leading companies in quantum research.

11. Important Terms

Quick Acronyms

  • QEC: Quantum Error Correction.
  • QKD: Quantum Key Distribution.
  • CNOT: Controlled NOT Gate.

MCQ

1. What is a qubit in quantum computing?
A. A classical binary digit
B. A unit of quantum information
C. A type of quantum hardware
D. A measure of quantum speed

Answer: B. A unit of quantum information

2. Which principle allows a qubit to exist in multiple states simultaneously?
A. Entanglement
B. Quantum Decoherence
C. Superposition
D. Quantum Interference

Answer: C. Superposition

3. What is quantum entanglement?
A. The interaction between photons and electrons
B. A phenomenon where two qubits are interdependent
C. The process of measuring qubits
D. The interference of quantum gates

Answer: B. A phenomenon where two qubits are interdependent

4. Which of the following is an advantage of quantum computing?
A. Unlimited memory storage
B. Breaking classical encryption systems efficiently
C. Zero hardware requirements
D. Elimination of computation errors

Answer: B. Breaking classical encryption systems efficiently

5. What is the role of a Hadamard gate in quantum computing?
A. Creates entanglement between qubits
B. Flips a qubit’s state
C. Puts a qubit into superposition
D. Measures the state of a qubit

Answer: C. Puts a qubit into superposition

6. Which algorithm is used for database search in quantum computing?
A. Shor’s Algorithm
B. Grover’s Algorithm
C. Dijkstra’s Algorithm
D. RSA Algorithm

Answer: B. Grover’s Algorithm

7. What is the main challenge faced by quantum computers?
A. High energy consumption
B. Quantum Decoherence
C. Limited processing speed
D. No practical applications

Answer: B. Quantum Decoherence

9. Which company developed the “Sycamore” quantum processor?
A. IBM
B. Microsoft
C. Google
D. Intel

Answer: C. Google

10. What does the No-Cloning Theorem state?
A. Quantum data cannot be erased
B. Quantum states cannot be exactly copied
C. Quantum computers can clone classical data
D. Only quantum gates can be cloned

Answer: B. Quantum states cannot be exactly copied

11. Which field is most likely to benefit from quantum computing?
A. Cryptography
B. Graphic Design
C. Marketing
D. Journalism

Answer: A. Cryptography

12. What is the significance of Shor’s Algorithm?
A. It speeds up searches in unsorted databases
B. It factors large numbers efficiently
C. It solves traveling salesman problems
D. It creates entanglement

Answer: B. It factors large numbers efficiently

13. Quantum computing is based on the principles of which branch of physics?
A. Classical Mechanics
B. Thermodynamics
C. Quantum Mechanics
D. Electromagnetism

Answer: C. Quantum Mechanics

14. What is Quantum Key Distribution (QKD) used for?
A. Enhancing classical encryption methods
B. Secure communication using quantum principles
C. Increasing memory in quantum computers
D. Faster data transmission

Answer: B. Secure communication using quantum principles

15. What does the CNOT gate do in quantum computing?
A. Creates a new qubit
B. Entangles two qubits
C. Erases quantum information
D. Measures the quantum state

Answer: B. Entangles two qubits
